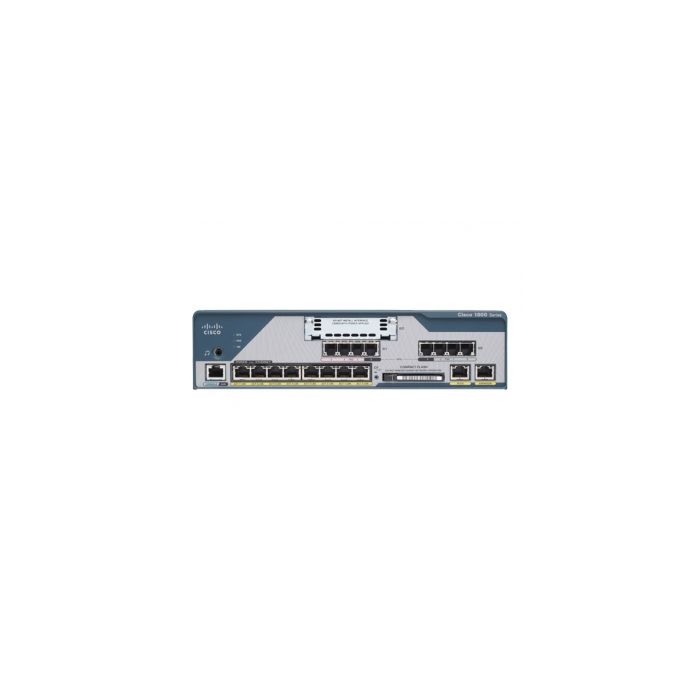

Cisco Systems C1861E-UC-4FXO-K9 1861, 8-user CME, CUE, Ph. Lic, 4FXS, 4FXO, 8xPOE, HWIC slot
Cisco Systems C1861E-UC-4FXO-K9
Main Specifications
| Product Description | Cisco 1861E - router - desktop |
| Device Type | Router - 8-port switch (integrated) |
| Enclosure Type | Desktop - 1.5U |
| WAN Ports Qty | 2 |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Remote Management Protocol | HTTP |
| VoIP Functionality | VoIP gateway |
| Telephony Interfaces | 4 phone (FXS), 4 line (FXO) |
| Features | Power over Ethernet (PoE), VLAN support, Data prioritization (Qos) for VoIP applications |
| Compliant Standards | IEEE 802.3af |
| Power | AC 120/230 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 26.7 cm x 28.1 cm x 6.7 cm |
| Weight | 3.6 kg |
Extended Specifications
| General | |
| Device Type | Router - 8-port switch (integrated) |
| Enclosure Type | Desktop - 1.5U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Remote Management Protocol | HTTP |
| Features | Power over Ethernet (PoE), VLAN support, Data prioritization (Qos) for VoIP applications |
| Compliant Standards | IEEE 802.3af, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 15, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, CSA C22.2 No. 60950-1, EN 300 386 |
| IP Telephony | |
| VoIP Functionality | VoIP gateway |
| Voice Codecs | G.711, G.729 |
| Telephony Interfaces | 4 phone (FXS), 4 line (FXO) |
| Expansion / Connectivity | |
| Interfaces | WAN: 1 x 10Base-T/100Base-TX - RJ-45 LAN: 8 x 10Base-T/100Base-TX - RJ-45 WAN: 1 x 10Base-T/100Base-TX - RJ-45 Audio: 1 x mini-phone 3.5 mm Phone line: 4 x FXS - RJ-11 Phone line: 4 x FXO - RJ-11 Management: 1 x console |
| Expansion Slots | 1 (total) / 1 (free) x HWIC |
| Installed Modules Qty (Max) | 0 (installed) / 1 (max) |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Miscellaneous | |
| Rack Mounting Kit | Optional |
| Software / System Requirements | |
| OS Provided | Cisco IOS SP services |
| Software Included | Cisco Unified Communications Manager Express (8 users), Cisco Unity Express (8 licences) |
| Dimensions & Weight | |
| Width | 26.7 cm |
| Depth | 28.1 cm |
| Height | 6.7 cm |
| Weight | 3.6 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 ?C |
| Max Operating Temperature | 40 ?C |
| Humidity Range Operating | 10 - 85% (non-condensing) |
