CTS-SX10N-K9
Out of stock
Only %1 left
SKU
CTS-SX10N-K9

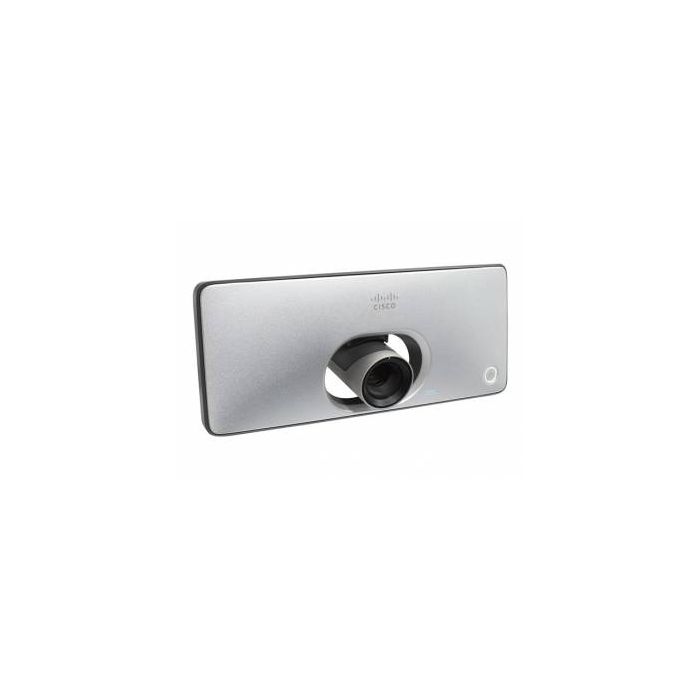

Cisco Systems CTS-SX10N-K9 SX10 HD w/ wall mount, int 5x cam and mic
Cisco Systems CTS-SX10N-K9
Main Specifications
| Product Description | Cisco TelePresence SX10 HD - video conferencing device |
| Device Type | Video conferencing device |
| VoIP Protocols | SIP |
| Codec | H.263, H.263+, H.264, G.711, G.722, G.729, G.729ab, G.711a, G.722.1 |
| Dimensions (WxDxH) | 27.5 cm x 9.1 cm x 11.7 cm |
| Weight | 900 g |
| Max Transfer Rate | 3 Mbps |
| Digital Signaling Protocol | SIP |
| Data Compression Protocol | G.729, G.711, G.722, H.263, H.264, G.729AB, H.263+, G.722.1, H.350 |
| Features | Auto gain control, echo cancellation |
| Video Input | Digital video camera |
| Video Output | Codec board - 1920 x 1080 |
| Audio Input | Microphone |
| Input Device | Remote control (wireless) |
| Networking | Network adapter - Ethernet, Fast Ethernet |
| Power | AC 120/230 V (50/60 Hz) |
Extended Specifications
| General | |
| Device Type | Video conferencing device |
| VoIP Protocols | SIP |
| Voice Codecs | G.711, G.722, G.729, G.729ab, G.711a, G.722.1 |
| Video Codecs | H.263, H.263+, H.264 |
| Quality of Service | IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p |
| Network Protocols | HTTP, HTTPS |
| Width | 27.5 cm |
| Depth | 9.1 cm |
| Height | 11.7 cm |
| Weight | 900 g |
| Built-in Devices | Microphone, camera |
| Modem | |
| Max Transfer Rate | 3 Mbps |
| Digital Signaling Protocol | SIP |
| Data Compression Protocol | G.729, G.711, G.722, H.263, H.264, G.729AB, H.263+, G.722.1, H.350 |
| Features | Auto gain control, echo cancellation |
| Video Input | |
| Type | Digital video camera (colour) - integrated |
| Digital Video Capture Resolution | 1920 x 1080 |
| Video Output | |
| Type | Codec board |
| Max External Resolution | 1920 x 1080 |
| Supported Display Graphics | VGA (640x480), XGA (1024x768), SVGA (800x600), HDTV (1920x1080), 1152x864, 1280x720, 720x480, 1280x768, 848x480, 704x576 |
| Digital Video Standard | High-Definition Multimedia Interface (HDMI) |
| Audio Input | |
| Type | Microphone - integrated |
| Input Device | |
| Type | Remote control |
| Connectivity Technology | Wireless |
| Networking | |
| Type | Network adapter |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Network / Transport Protocol | TCP/IP, NTP, DHCP, DNS |
| Features | Flow control, power over Ethernet (PoE), LDAP support, VLAN support, DiffServ support, IPv6 support, Quality of Service (QoS), SSH support, IPv4 support, Class of Service (CoS), Secure Copy (SCP) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
| Expansion / Connectivity | |
| Interfaces | 1 x network - Ethernet 10Base-T/100Base-TX (PoE) - RJ-45 1 x USB 1 x audio / video - HDMI input - 19 pin HDMI Type A 1 x video - 15 pin HD D-Sub (HD-15) 1 x audio / video - HDMI output - 19 pin HDMI Type A 1 x microphone - input - mini-phone 3.5 mm 4-pole 1 x audio - line-out - mini-phone stereo 3.5 mm |
| Miscellaneous | |
| Cables Included | 1 x HDMI cable 1 x network cable |
| Mounting Kit | Included |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, FCC CFR47 Part 15, UL 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-07, Directive 2004/108/EC, Directive 2006/95/EC, IEC60950-1 |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 12 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 0 ?C |
| Max Operating Temperature | 40 ?C |
| Humidity Range Operating | 10 - 90% |
