UCS-IOM-2304
Out of stock
Only %1 left
SKU
UCS-IOM-2304

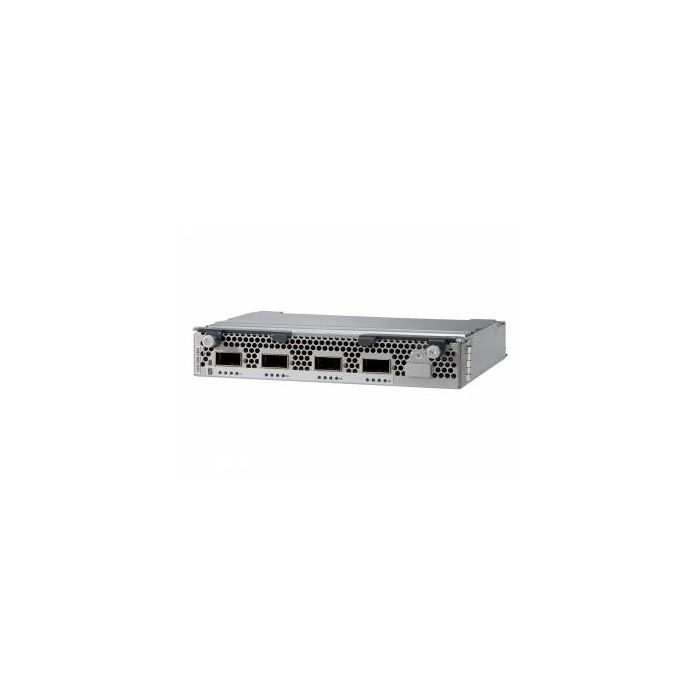

Cisco Systems UCS-IOM-2304 UCS 2304XP I/O Module (4 External, 8 Internal 40Gb Ports)
Cisco Systems UCS-IOM-2304
Main Specifications
| Product Description | Cisco UCS 2304 Fabric Extender - expansion module |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Ports | 40Gb Ethernet / FCoE QSFP+ x 4 + 40Gb Ethernet (backplane) x 8 |
| Dimensions (WxDxH) | 3.45 cm x 18.3 cm x 19.4 cm |
| Weight | 1.134 kg |
| Data Link Protocol | FCoE, 40 Gigabit LAN |
| Performance | Forwarding performance: 960 Gbps |
| Capacity | VLANs supported: 1024 Jumbo frame size: 9216 |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ba, IEEE 802.1Qaz |
| Designed For | UCS 5108 Blade Server Chassis SmartPlay 8 Expansion Pack, SmartPlay Base, SmartPlay Select, SmartPlay Select (Tracer) |
Extended Specifications
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Networking | |
| Ports | 40Gb Ethernet / FCoE QSFP+ x 4 + 40Gb Ethernet (backplane) x 8 |
| Connectivity Technology | Wired |
| Data Link Protocol | Fibre Channel over Ethernet (FCoE), 40 Gigabit Ethernet |
| Performance | Forwarding performance: 960 Gbps |
| Capacity | VLANs supported: 1024 Jumbo frame size: 9216 |
| Features | VLAN support, Weighted Round Robin (WRR) queuing, High Availability, Data Center Bridging Exchange (DCBX) support, priority-based flow control, Quality of Service (QoS), Jumbo Frames support, Class of Service (CoS), Fabric Extender Transceiver (FET) |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ba, IEEE 802.1Qaz |
| Expansion / Connectivity | |
| Interfaces | 4 x 40Gb Ethernet / FCoE (uplink) - QSFP+ 8 x 40Gb Ethernet - backplane |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, Directive 2004/108/EC, Directive 2006/95/EC, VCCI Class A, KN22 Class A, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 A, CNS 13438 Class A, CAN/CSA-C22.2 No. 60950-1, EN 300386 |
| Dimensions & Weight | |
| Width | 3.45 cm |
| Depth | 18.3 cm |
| Height | 19.4 cm |
| Weight | 1.134 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 ?C |
| Max Operating Temperature | 40 ?C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Compatibility Information | |
| Designed For | Cisco UCS 5108 Blade Server Chassis SmartPlay 8 Expansion Pack, SmartPlay Base, SmartPlay Select, SmartPlay Select (Tracer) |
