WS-X45-SUP8-E/2
Out of stock
Only %1 left
SKU
WS-X45-SUP8-E/2

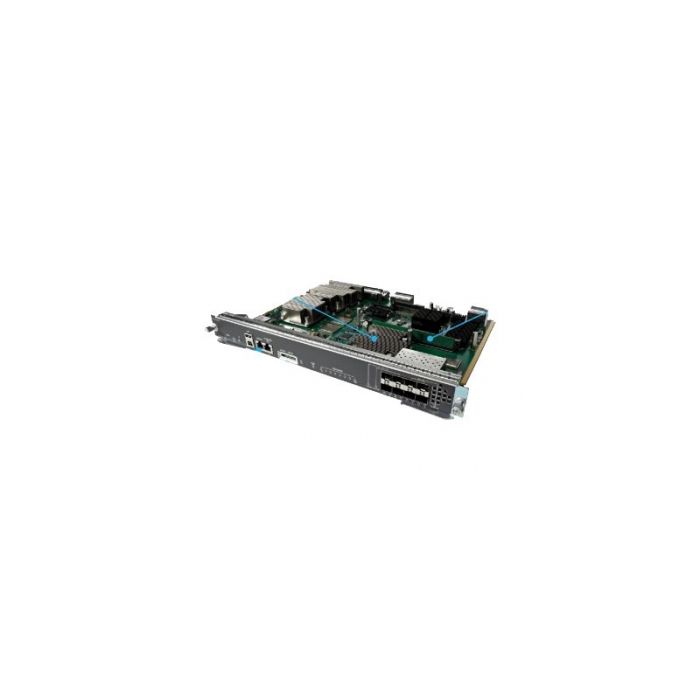

Cisco Systems WS-X45-SUP8-E/2 Catalyst 4500 E-Series Redundant Supervisor 8-E
Cisco Systems WS-X45-SUP8-E/2
Main Specifications
| Product Description | Cisco Supervisor Engine 8-E Redundant - control processor |
| Device Type | Control processor |
| Form Factor | Plug-in module |
| Processor | 2.2 GHz |
| RAM | 4 GB |
| Performance | Switching capacity: 928 Gbps Per-slot switching capacity: 48 Gbps IPv6 routing: 125 Mpps IPv4 routing: 250 Mpps |
| Capacity | QoS hardware entries: 128000 Security services entries: 128000 Active VLANs: 4094 ARP entries: 47000 MAC addresses: 55000 IPv6 routing table entries: 128000 IPv4 routing table entries: 256000 Spanning Tree Protocol instances: 10000 Switched virtual interfaces (SVIs): 4094 NetFlow entries: 128000 |
?
Extended Specifications
| General | |
| Device Type | Control processor |
?
| Processor / Memory / Storage | |
| Processors Installed | 2.2 GHz |
| RAM | 4 GB SDRAM |
?
| Networking | |
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Routing Protocol | PIM-SM, PIM-DM, PIM-SSM |
| Remote Management Protocol | RMON 1, RMON 2, CLI |
| Performance | Switching capacity: 928 Gbps Per-slot switching capacity: 48 Gbps IPv6 routing: 125 Mpps IPv4 routing: 250 Mpps |
| Capacity | QoS hardware entries: 128000 Security services entries: 128000 Active VLANs: 4094 ARP entries: 47000 MAC addresses: 55000 IPv6 routing table entries: 128000 IPv4 routing table entries: 256000 Spanning Tree Protocol instances: 10000 Switched virtual interfaces (SVIs): 4094 NetFlow entries: 128000 |
| Features | Uplink, DHCP support, VLAN support, IPv6 support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Cisco EnergyWise technology, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, Virtual Routing and Forwarding (VRF), Class of Service (CoS), Flexible NetFlow (FNF) |
| Compliant Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3az |
?
| Communications | |
| Supported Flash Memory Cards | SD Memory Card |
?
| Expansion / Connectivity | |
| Interfaces | 1 x console - RJ-45 1 x 1000Base-T (management) - RJ-45 1 x USB - Type A 8 x - SFP+ |
?
| Miscellaneous | |
| MTBF | 309,906 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, EN 300386 |
?
| Environmental Parameters | |
| Min Operating Temperature | 0 ?C |
| Max Operating Temperature | 40 ?C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
?
